About the project

Regenerative Electric Driven Power Cart

Our project is sponsored by "Great Lakes Controls and Engineering, LLC." and "Conceptual Innovations". The main purpose of this project is to create a cart that will be used in assembly plants around the world that can regenerate power without having to be plugged in. This will allow companies to not only save money on their power consumption, but to also make the assembly plant more economically friendly by using less energy.

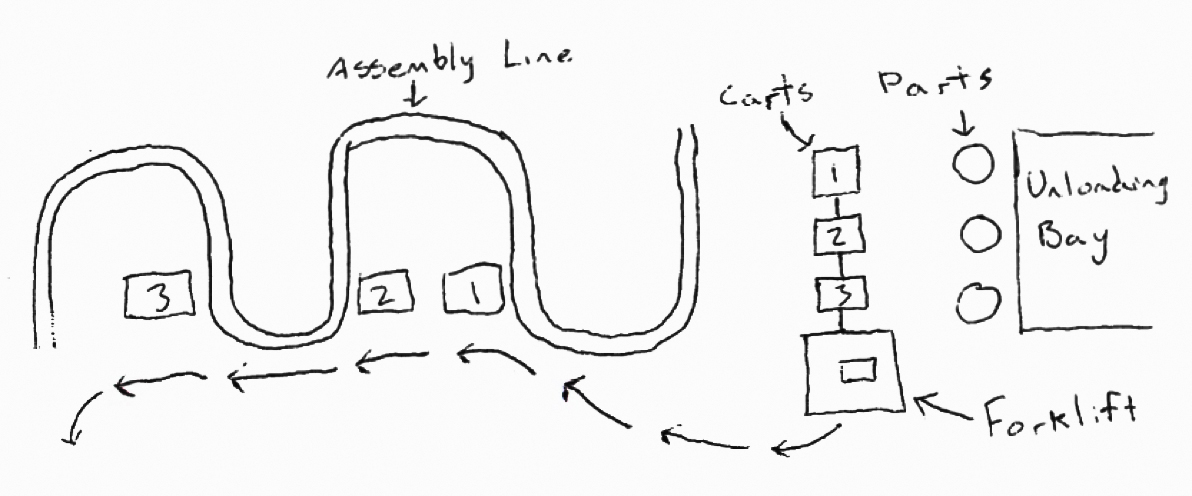

More specifically, companies need to move their parts for production closer to the assembly line. The parts are very heavy (4000-6000lbs) and cannot be moved manually but instead need a cart to be moved. A forklift picks the carts up and pulls them to their corresponding location. As the carts are being pulled, the motor is being charged through a charge controller. When they are unhooked, they will have enough power to move the required distance (~15ft) to be closer to the assembly line. The forklift will then come back around and pick up the empty cart and then the process is repeated.


Demo Video

Regenerative Electric Driven Power Cart

Project Timeline

System Level Schedule and Milestones

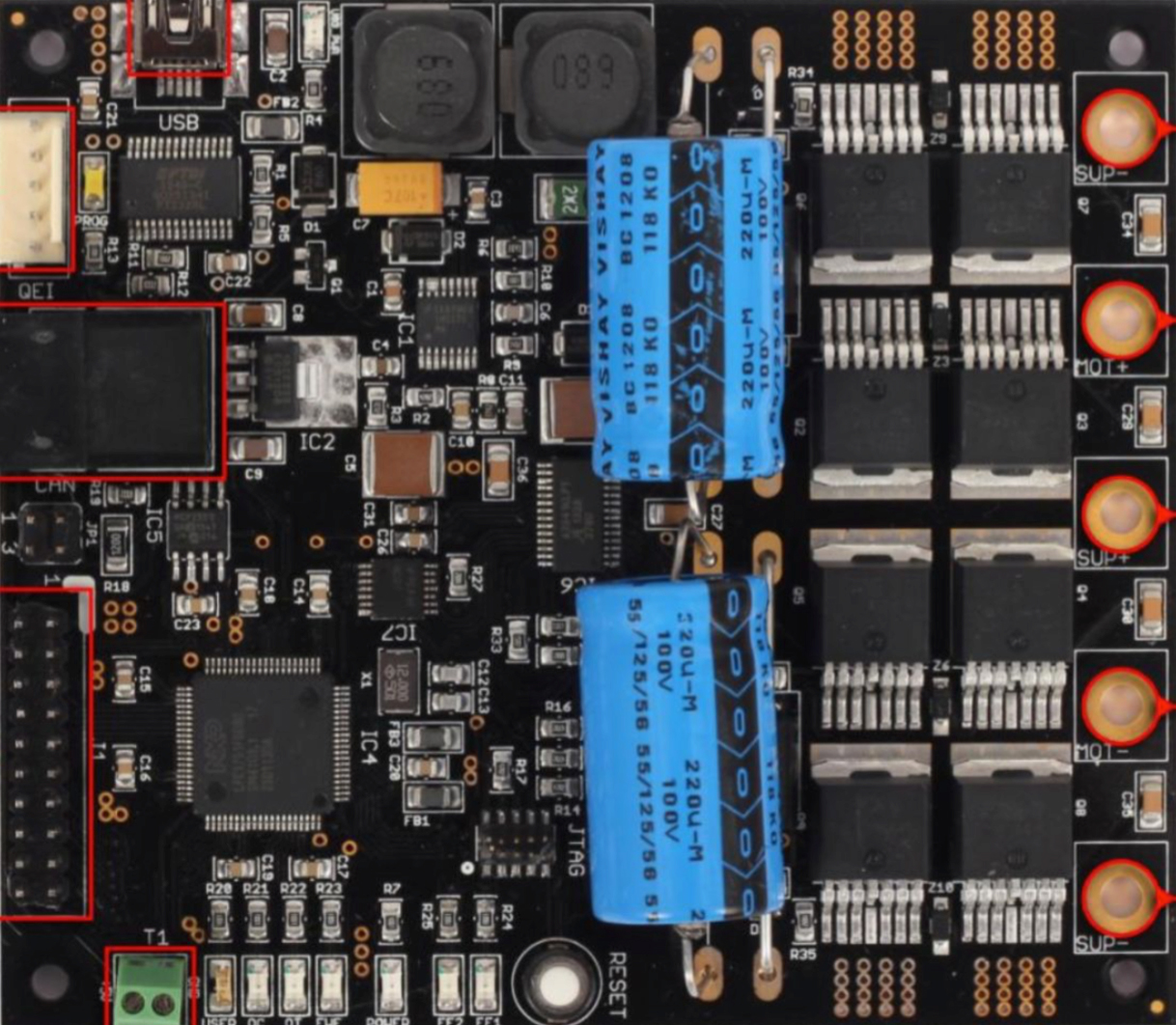

  • Pick & Design Controllers

    February 26

    Pick and/or design controllers.

  • Establish Connection with Controller

    March 11

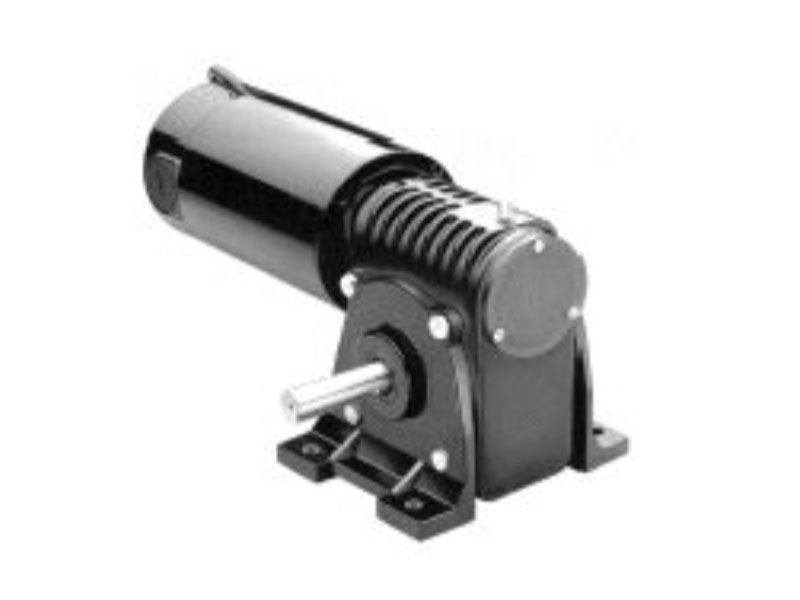

    Establish connection from DC motors to motor controller.

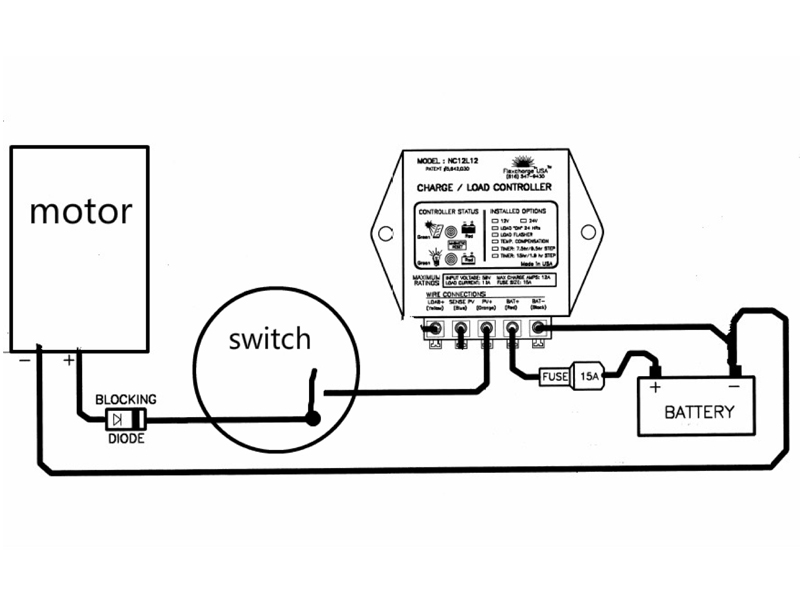

    Establish connection from Batteries to charge controller.

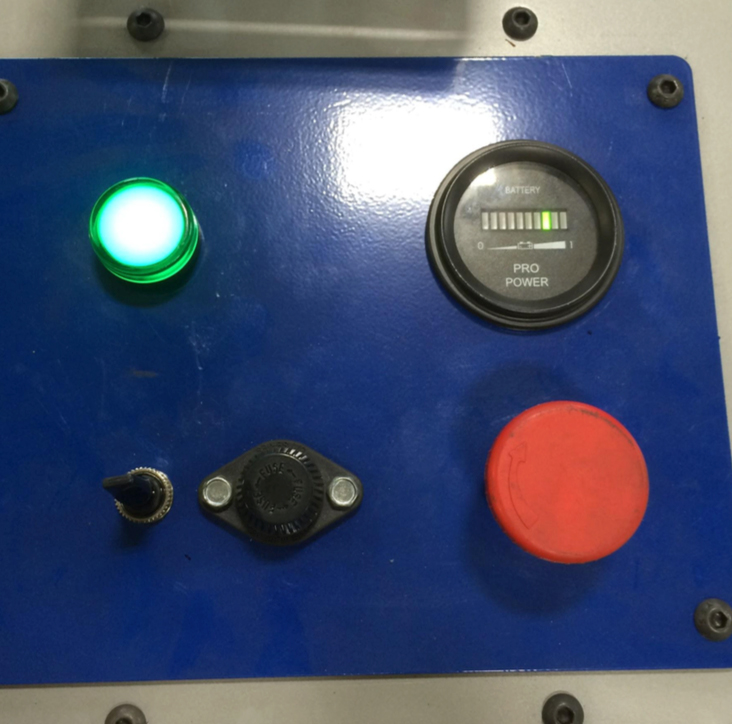

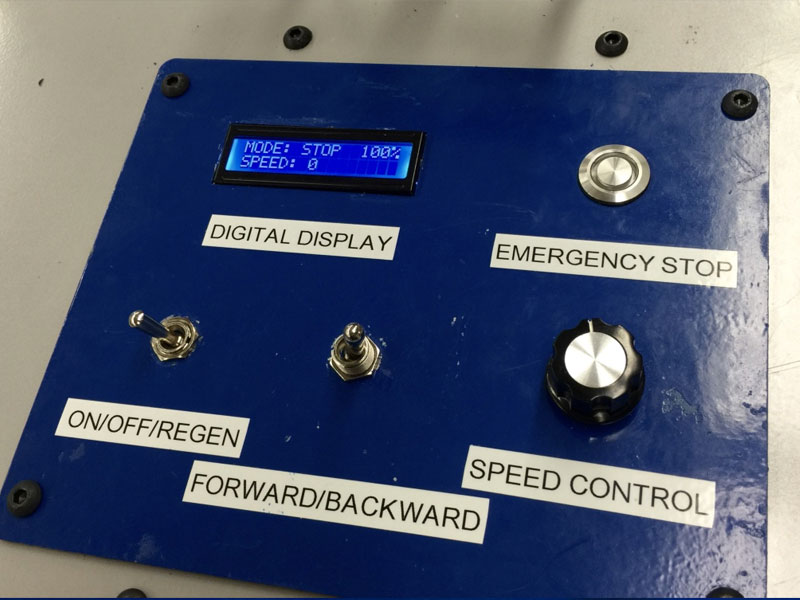

  • Control Panel & Power Control System

    March 18

    Establish connections from Control Panel's components to related system

    Establish Power control system

  • Communications Tests

    March 25

    Establish communications between each system and test.

  • First Prototype

    April 1

    Have first prototype working, installing control system to cart.

  • Debugging & Improving

    April 8

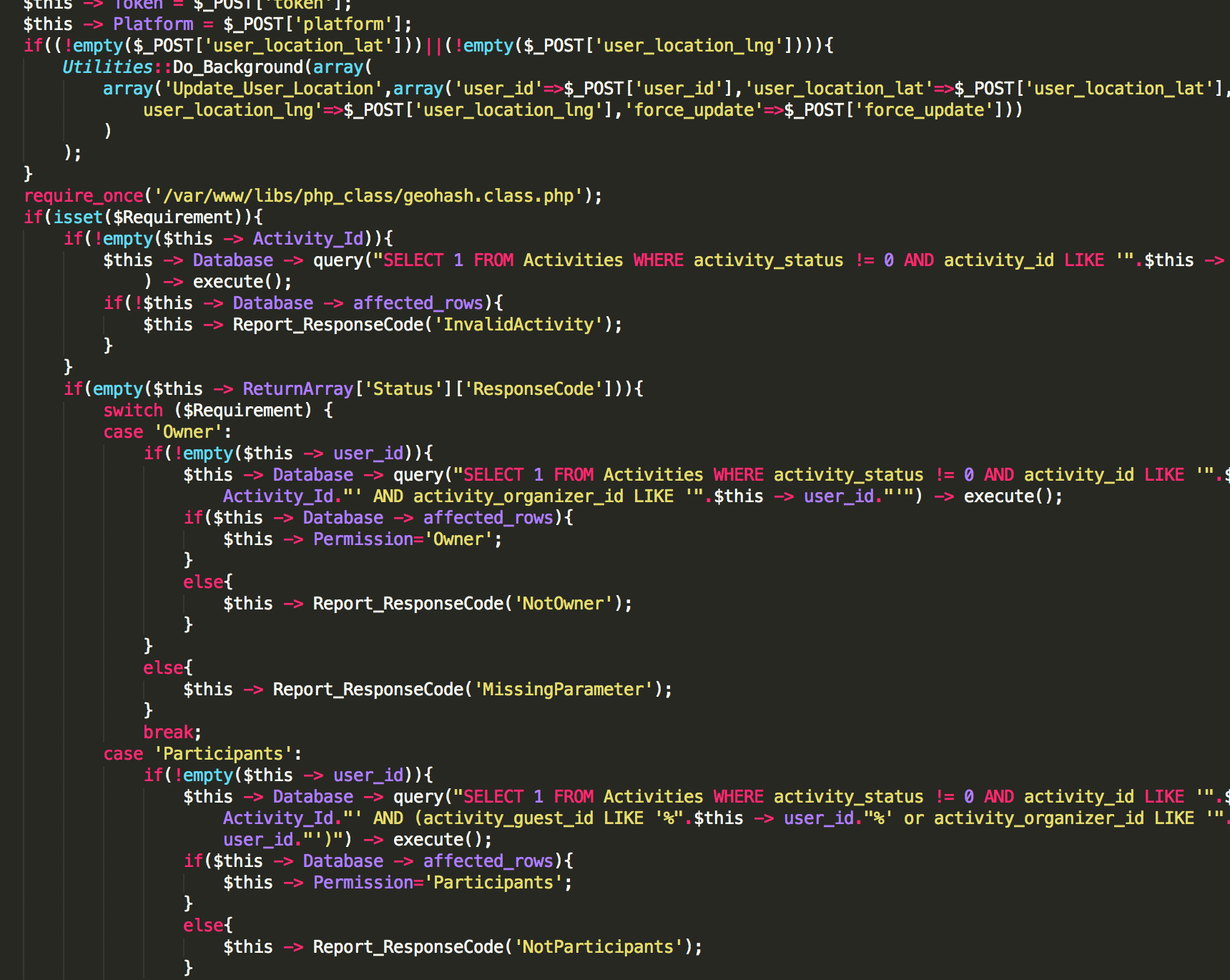

    Debug and improve our system.

  • Final Prototype

    April 15

    Have final prototype working.

Project Budget

Budget Breakdown

Number Manufacturer Item Name Quantity Cost (US$)

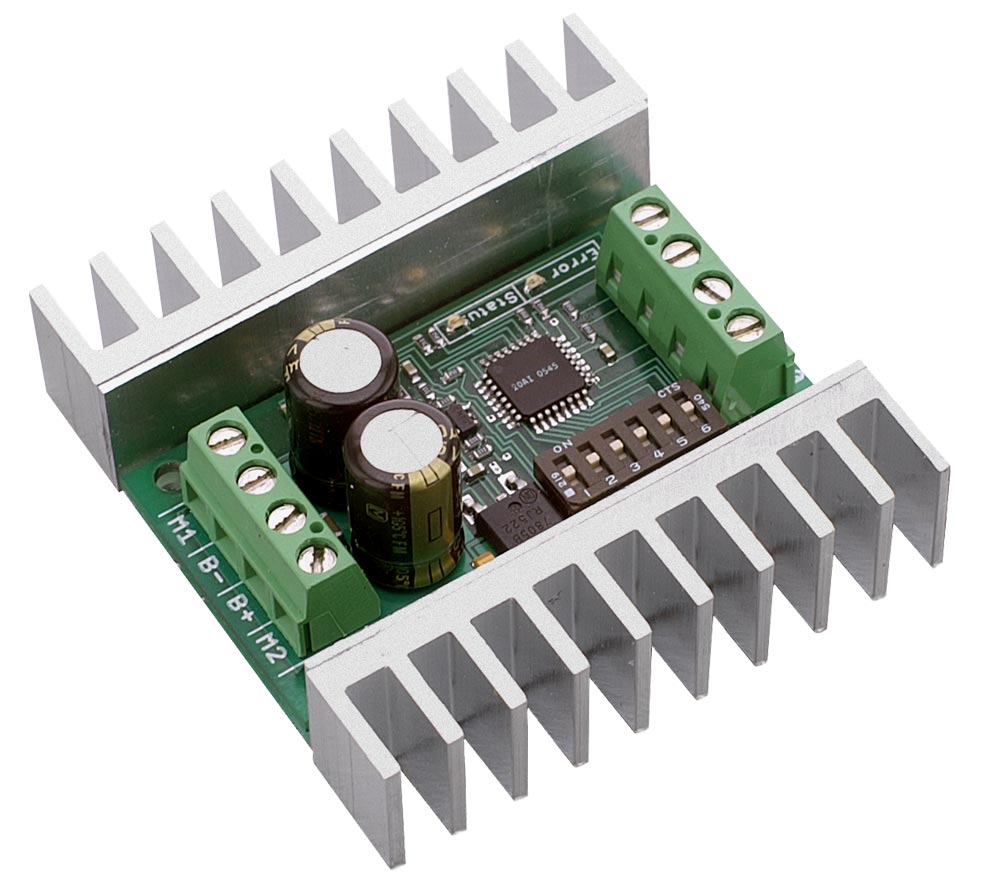

1 SyRen® 50A Regenerative Motor Driver 1 $119.99

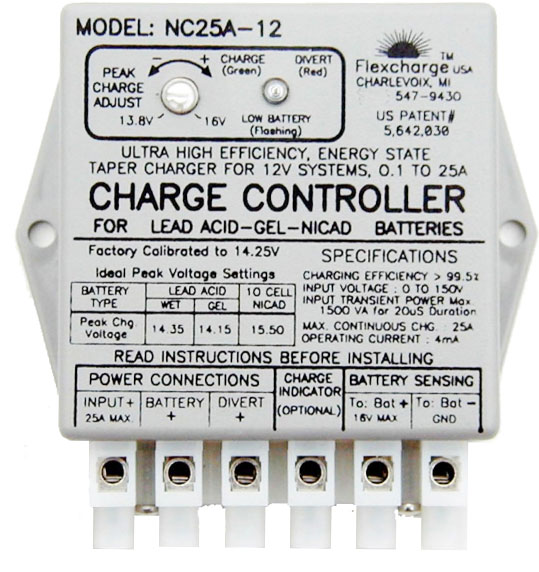

2 Flexcharge® Charge Controller (NC25A-12) 1 $90.00
3 Qiorange® Fuse holder in-line AWG 4 $2.79
4 Foxnovo® assorted auto car mini flade fuses. 4 $0.53
5 Geeetech® Infrared proximity switch module 2 $15.98
6 Atmel® ATmega328P-PU DIP-28 Chip 1 $4.50
7 Ulincos® Momentary Push Button Switch U19D1 1 $8.99
8 Uxcell® AC ON-OFF-ON 3 Positions Toggle Switch 3PDT 2 $17.98
9 Uxcell® PCB Mount Screw Terminal Blocks 20 $3.98

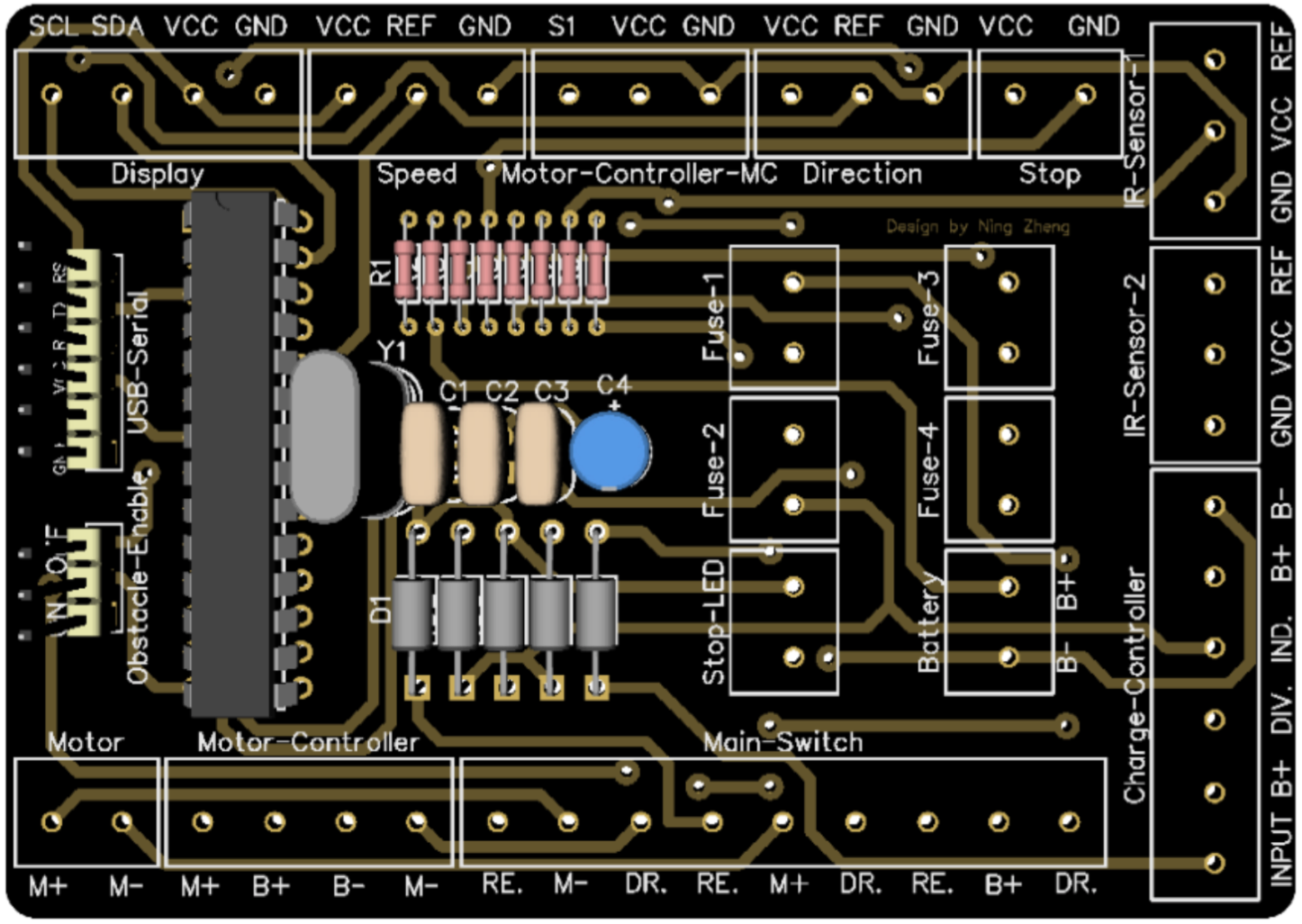

10 Bay Area Circuits® PCB Manufacture 1 $52.50
11 Uxcell® 22pF 50V Low Voltage Radial Ceramic Disc Capacitors 3 $0.17
12 Uxcell® Quartz Crystal Oscillator 16MHz 1 $0.58
13 Arduino® USB 2 Serial Converter Micro 1 $19.95
Total $337.94
