Pictures of Design Progress

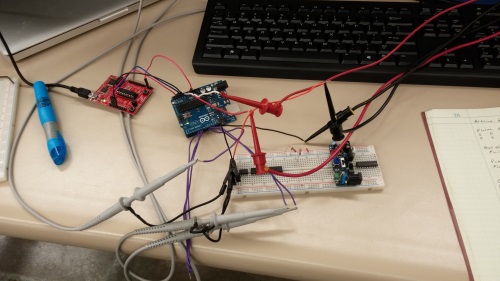

Testing the code using a MSP430 and Arduino

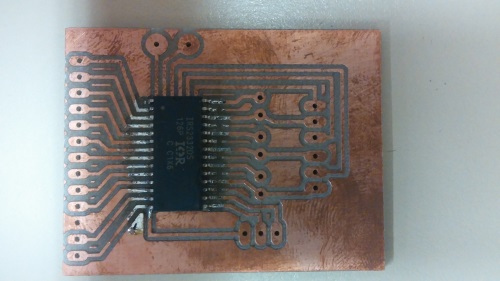

First prototyped board for the gate drivers

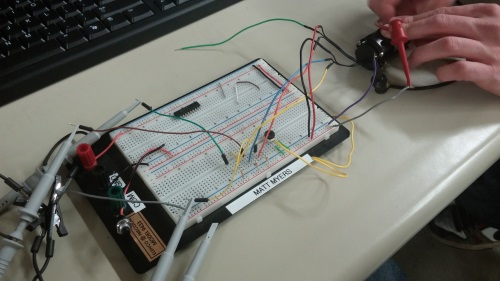

Motor hall effect sensor interface being tested with small scale motor

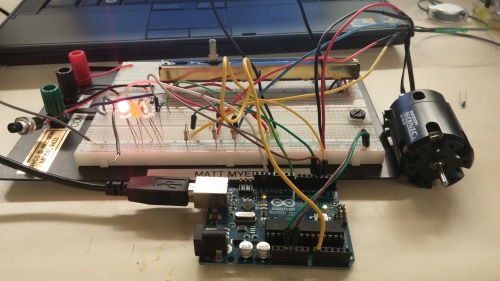

Testing motor inputs and outputs with the Arduino Code

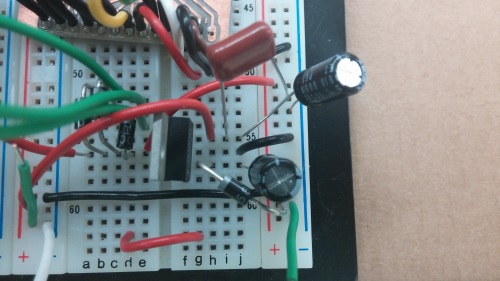

Voltage regulator circuit laid out on the protoboard

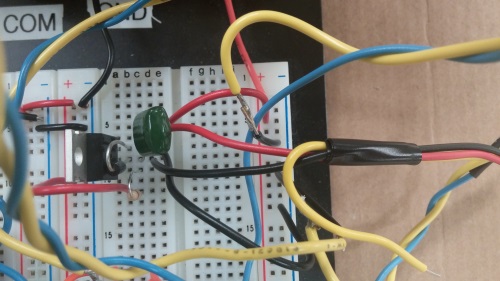

Fan controller circuit prototype
Initial testing of the completed prototype

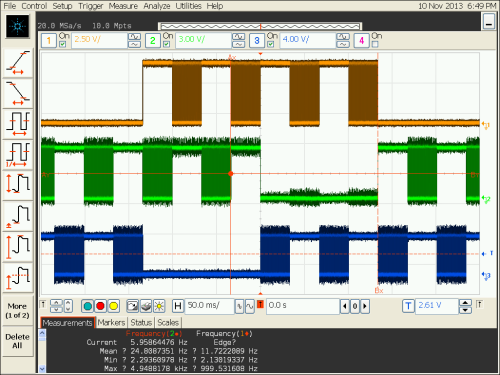

Pulse width modulation outputs tested on oscilliscope

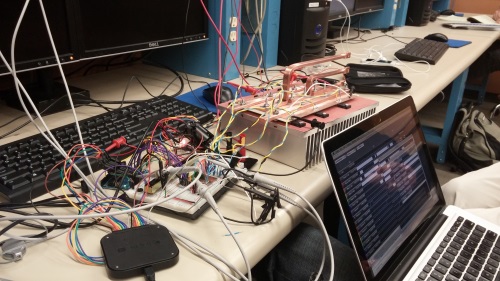

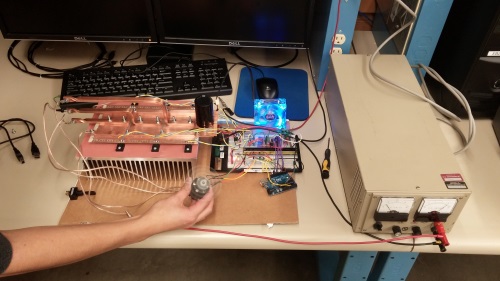

Final prototype being tested with low voltage motor
