Our Project
Initial PCB Design

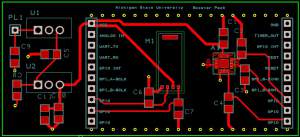

The proposed layout for our printed circuit board that would be used to populate the Boosterpack.(for more information please see Proposal in Documents)
Main components

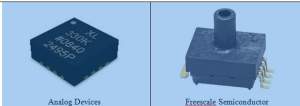

The ADXL330 accelerometer and the MPXM2102 altimeter were chosen for our project to carry out our needs. (for more information please see Proposal in Documents)
Final Layout

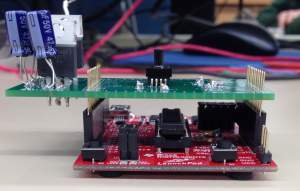

Shown is the fully populated Boosterpack, mounted on the MSP430 microcontroller.(for more information please see Proposal in Documents)
Boosterpack-Rocket Integration

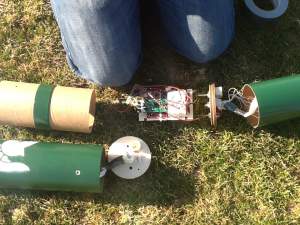

This is a picture of how the circuitry will appear when inserted into rocket.

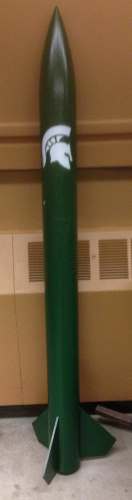

Final Rocket

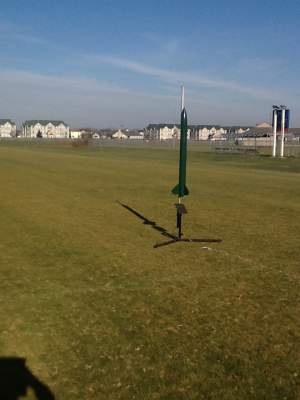

Rocket mounted on launchpad
